Wmw Heckert Fss 400 V/2 Vertical Milling Machine

Wmw Heckert Fss 400 V/2 Vertical Milling Machine Specification

Shape
Vertical column with rectangular work table

Method
Manual operation

Cutting Speed
Range 28 1400 rpm (variable speeds)

Size
Table size 400 x 1800 mm approx.

Accuracy
0.02 mm

Spindle Speed
18 steps, 28 1400 rpm

Load Capacity
Up to 800 kg on table

Machine Type
Wmw Heckert FSS 400 V/2

Hardness
Heavy-duty construction for sustained accuracy

Coating
Anti-corrosive coated components

Thread Type
Metric

Weight
Approx. 3800 kg

Type
Vertical Milling Machine

Material
Cast Iron body with steel table and components

Tolerance
High Precision

Surface
Milled

Use
For precise milling operations

Application
Tool rooms, workshops, manufacturing, fabrication industries

Usage & Applications
Vertical milling for machining flat, slotting, keyways, drilling, boring etc.

Coolant System
Integrated

Voltage
3 Phase, 415V, 50Hz

Overall Dimensions (LxWxH)
Approx. 2500 x 2000 x 2200 mm

Model
FSS 400 V/2

Table Travel (X/Y/Z)
1400/400/400 mm (approx.)

Spindle Taper
ISO 40

Feed Rates
12 600 mm/min

Main Motor Power
4.0 kW

Wmw Heckert Fss 400 V/2 Vertical Milling Machine Trade Information

Minimum Order Quantity
1 Number

Supply Ability
10 Per Week

Delivery Time
7 Days

About Wmw Heckert Fss 400 V/2 Vertical Milling Machine

*WMW HECKERT FSS 400 VI/2 VERTICAL MILLING MACHINE*

CATEGORY : MILLING MACHINES
CAPACITY : 1120 x 400 x 430 mm
Reference No: 3497

Technical Specifications:

x-travel: 1120 mm
y-travel: 400 mm
z-travel: 430 mm

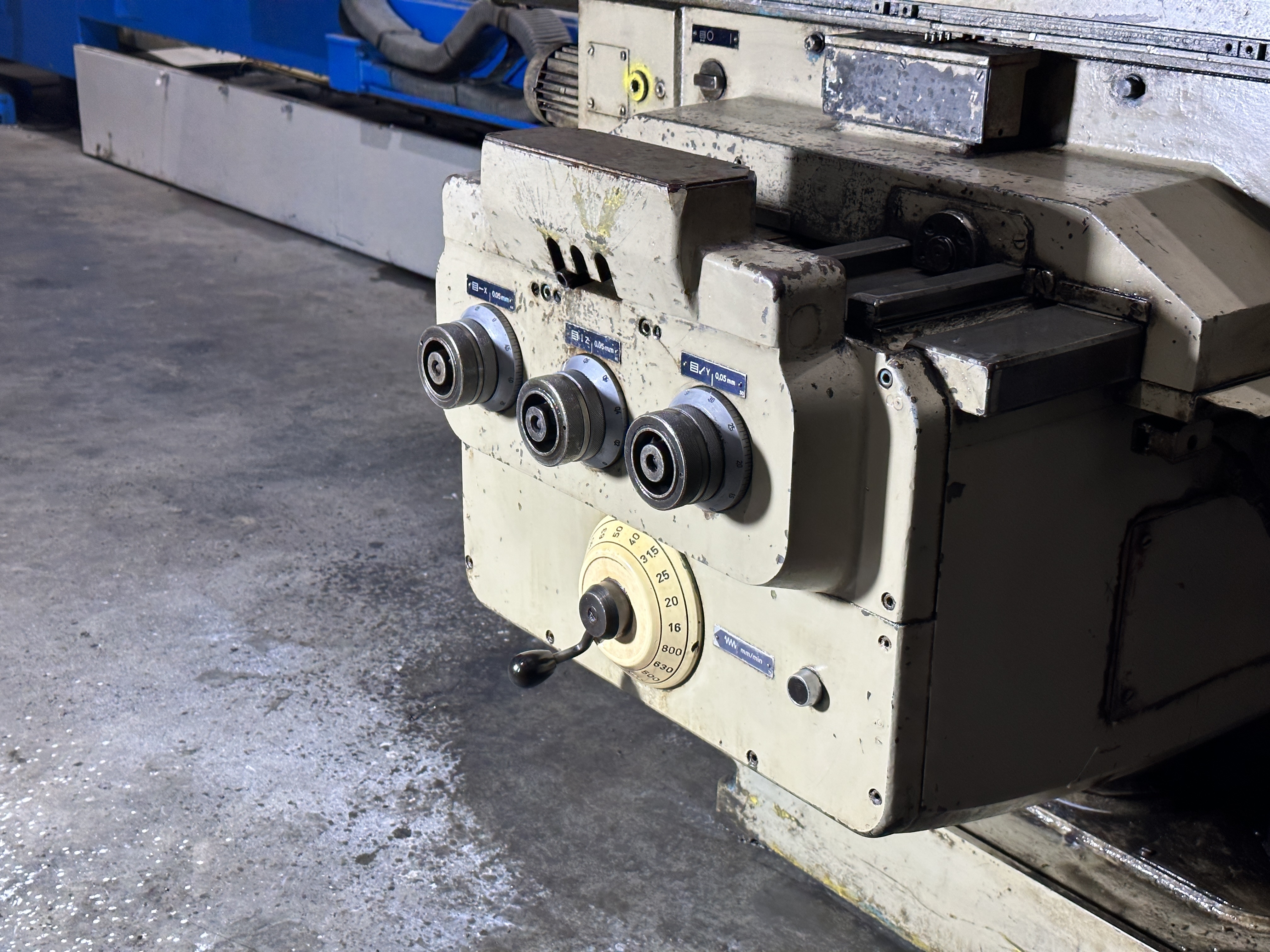

feed: x+y=16 800 / 18 step mm/min
feed: z= 5 250 / 18 step mm/min
table load: 1.5 t

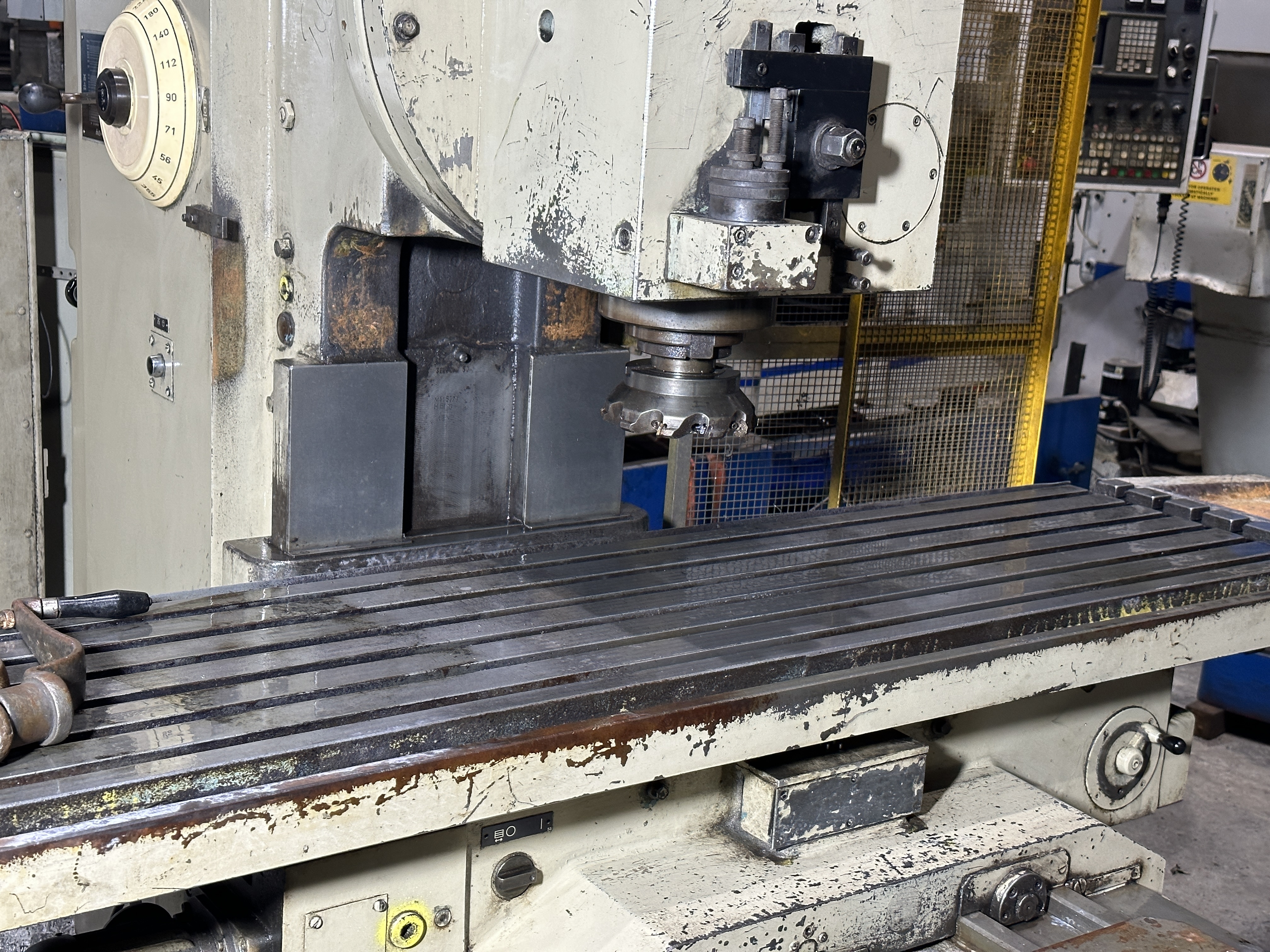

clamping surface area: L:1600 x B:400 mm
distance spindle center to column: 450 mm
distance spindle nose and table: min/max: 70/500 mm
revolutions per minute 28 1400 / 18 step U/min.
quill stroke 100 mm

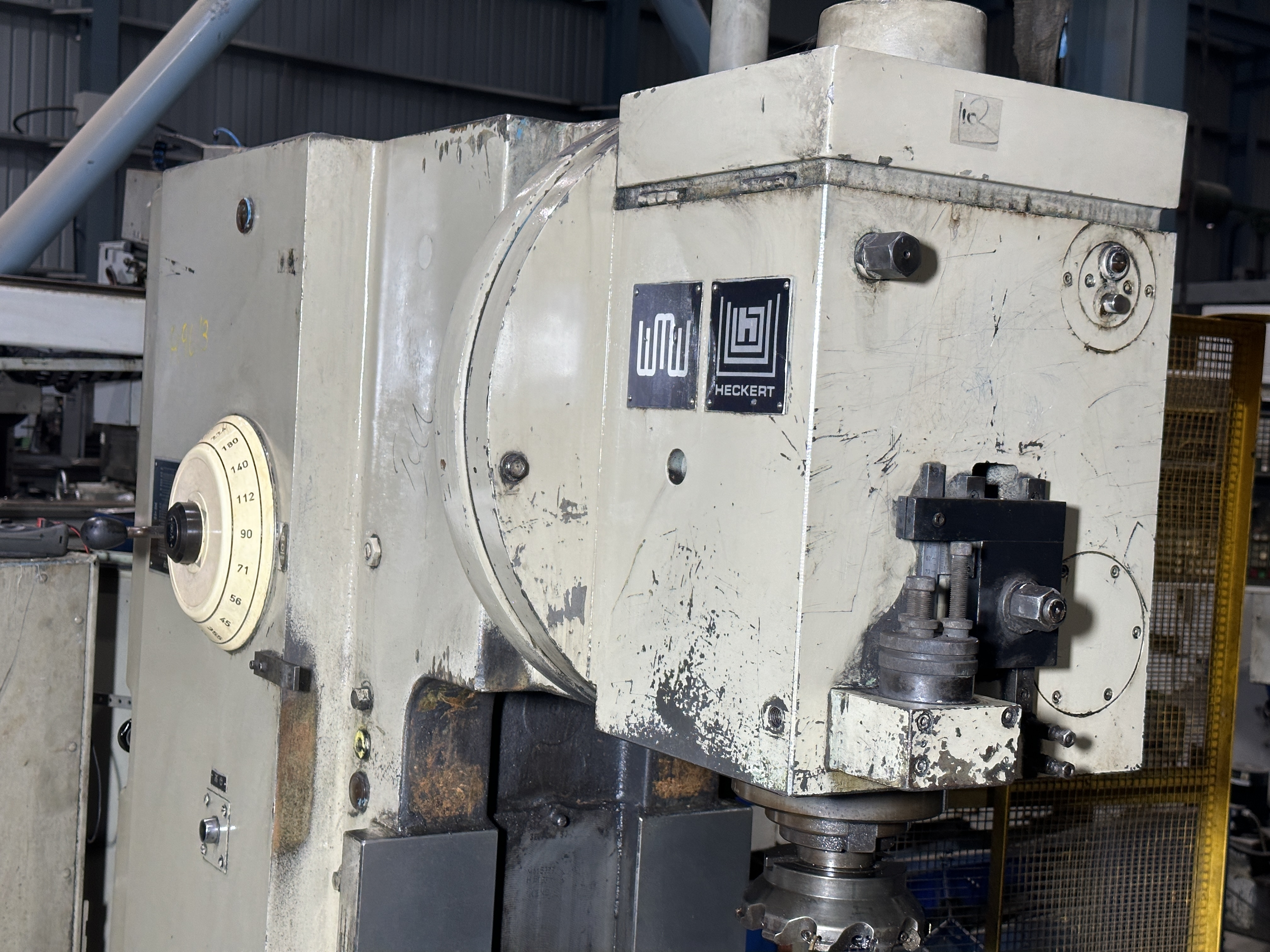

milling head -swivable +/-re/li=45
tool taper: SK 50
total power requirement: 14.5 kW
weight of the machine ca.: 4 t
dimension machine approx.LxWxH: 2,0 x 1,7 x 2,7 m
dimensions electric cabinet LxWxH: 0,8 x 0,45 x 1,6 m

Built for Heavy-Duty Precision

Constructed from premium cast iron with a steel work table, the FSS 400 V/2 features anti-corrosive coatings for longevity. Its high precision and accuracy make it suitable for intricate and sustained milling operations in demanding industries.

Versatile Machining Capabilities

Boasting a travel range of 1400/400/400 mm (X/Y/Z), this vertical milling machine can perform flat surface machining, slotting, keyways, drilling, and boring. The robust load capacity and ample table size ensure adaptability in various production settings.

Efficient and User-Friendly Operation

Equipped with a manual control method, the FSS 400 V/2 offers variable cutting speeds and feed rates, allowing operators to achieve precise results. The integrated coolant system and ergonomic design contribute to safe and effective performance.

FAQ's of Wmw Heckert Fss 400 V/2 Vertical Milling Machine:

Q: How does the WMW Heckert FSS 400 V/2 maintain high precision during milling operations?

A: Thanks to its heavy-duty cast iron construction, steel table, and anti-corrosive coated components, the FSS 400 V/2 consistently delivers precise results with an accuracy of 0.02 mm under rigorous machining duties.

Q: What types of materials and workpieces can be machined on the FSS 400 V/2?

A: This milling machine is ideal for processing various metals and alloys, particularly those suited for flat machining, slotting, keyways, drilling, and boring, making it popular in tool rooms, workshops, and manufacturing industries.

Q: Where is the WMW Heckert FSS 400 V/2 typically used?

A: The machine is primarily deployed in professional tool rooms, manufacturing and fabrication workshops, and other industrial environments where precision milling is essential.

Q: What is the process for adjusting cutting speed and feed rates on this machine?

A: Operators manually select one of 18 spindle speed steps (ranging from 28 to 1400 rpm) and set feed rates anywhere between 12 and 600 mm/min, ensuring operational flexibility based on the material and desired finish.

Q: How does the integrated coolant system improve the machining process?

A: The built-in coolant system helps maintain optimal temperature, reducing thermal distortion and extending tool life while ensuring smoother operation and finer surface finishes.

Q: What are the key usage and benefits of owning a WMW Heckert FSS 400 V/2?

A: Users benefit from high accuracy, versatility in applications, heavy-duty load support, optimized operator safety, and sustained performance, making it a valuable asset for consistent and precise milling tasks.
