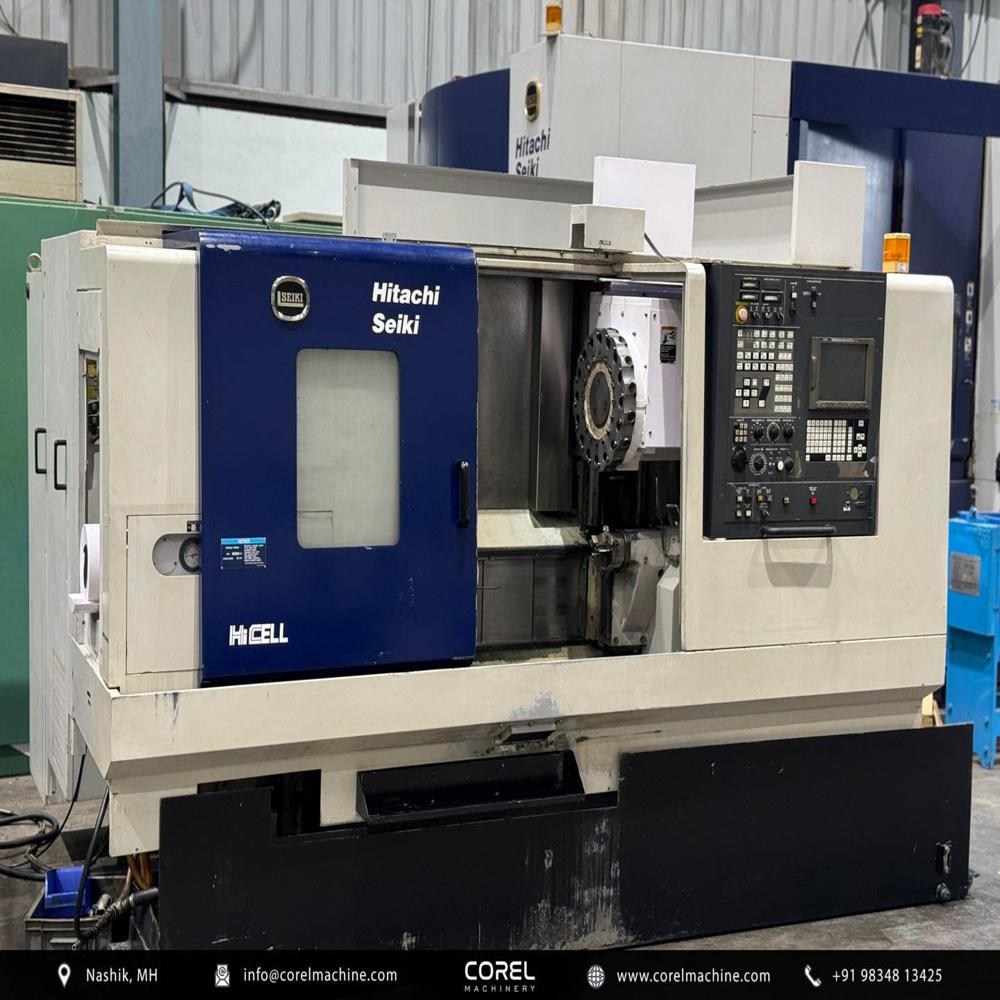

HITACHI SEIKI CA23-II CNC TURN MILL (Y + C Axis + Sub Spindle)
HITACHI SEIKI CA23-II CNC TURN MILL (Y + C Axis + Sub Spindle) Specification
- Product Type
- CNC Turn Mill (Y + C Axis + Sub Spindle)
- General Use
- CNC Precision Turning and Milling Operations
- Material
- Cast Iron, Hardened Steel, Alloy Steel, Aluminum, Brass (workpieces)
- Type
- Horizontal CNC Turn Mill Center
- Capacity
- Max Turning Diameter: 320mm, Max Machining Length: 794mm
- Weight (kg)
- Approx. 7200 kg
- Computerized
- Yes
- Automatic
- Yes
- PLC Control
- FANUC CNC Control (Model specific)
- Bar Feeder
- Optional
- Power Source
- Electric
- Power Consumption
- 22 kVA
- Rigidity
- High rigidity cast-iron bed
- Voltage
- AC 400V, 3 Phase
- Motor
- Main Spindle: 18.5/15 kW, Sub Spindle: 7.5/5.5 kW
- Table Size
- N/A (CNC Lathe Type)
- Spindle Speed
- Main: Up to 4000 rpm, Sub: Up to 6000 rpm
- Axial Choice
- X, Y, Z, C, Sub-Spindle Axis
- Dimension (L*W*H)
- Approx. 3600mm x 1900mm x 2100mm
- Feature
- Y + C Axis, Sub Spindle, Live Tooling, Turret Type, Multiple Machining
- Color
- Grey/White
- Tailstock
- No (Equipped with sub spindle for tailstock functions)
- Turret Indexing Time
- Approx. 0.2 s/position
- Lubrication System
- Automatic Centralized Lubrication
- Hydraulic System
- Integrated for chuck and turret

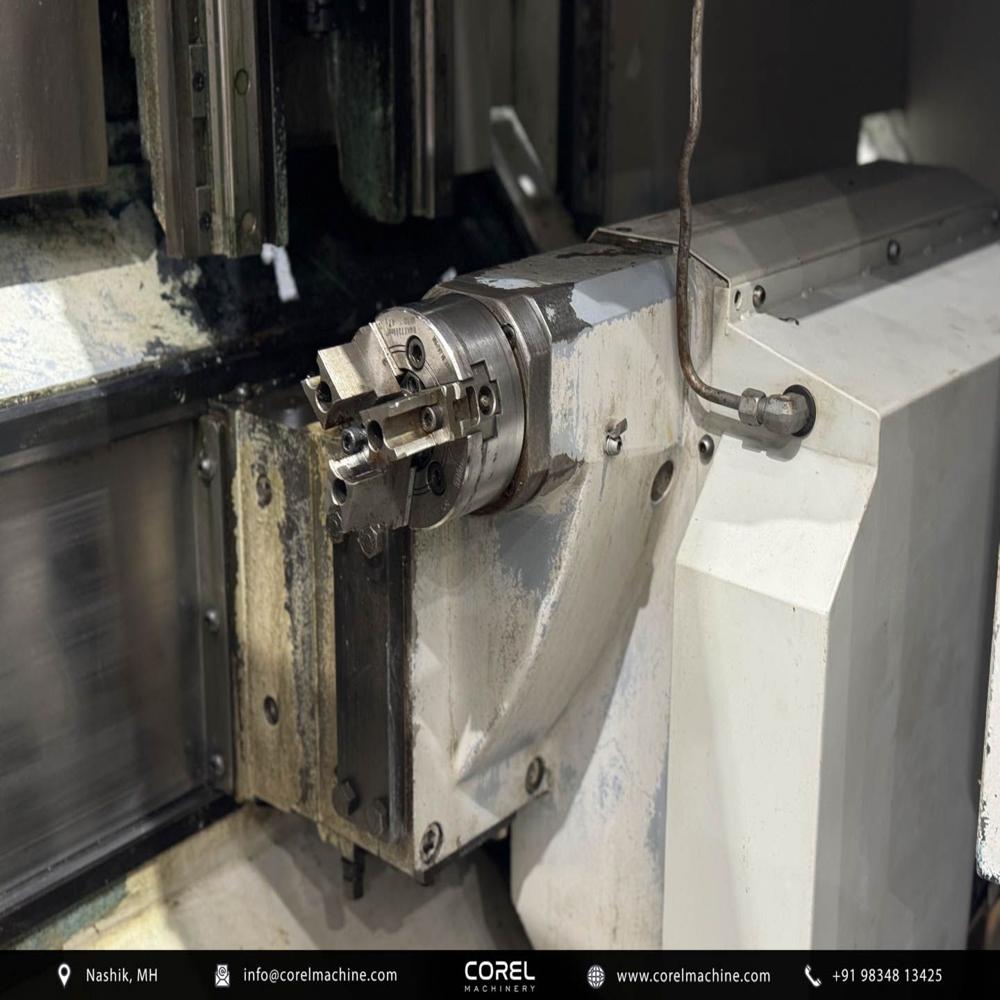

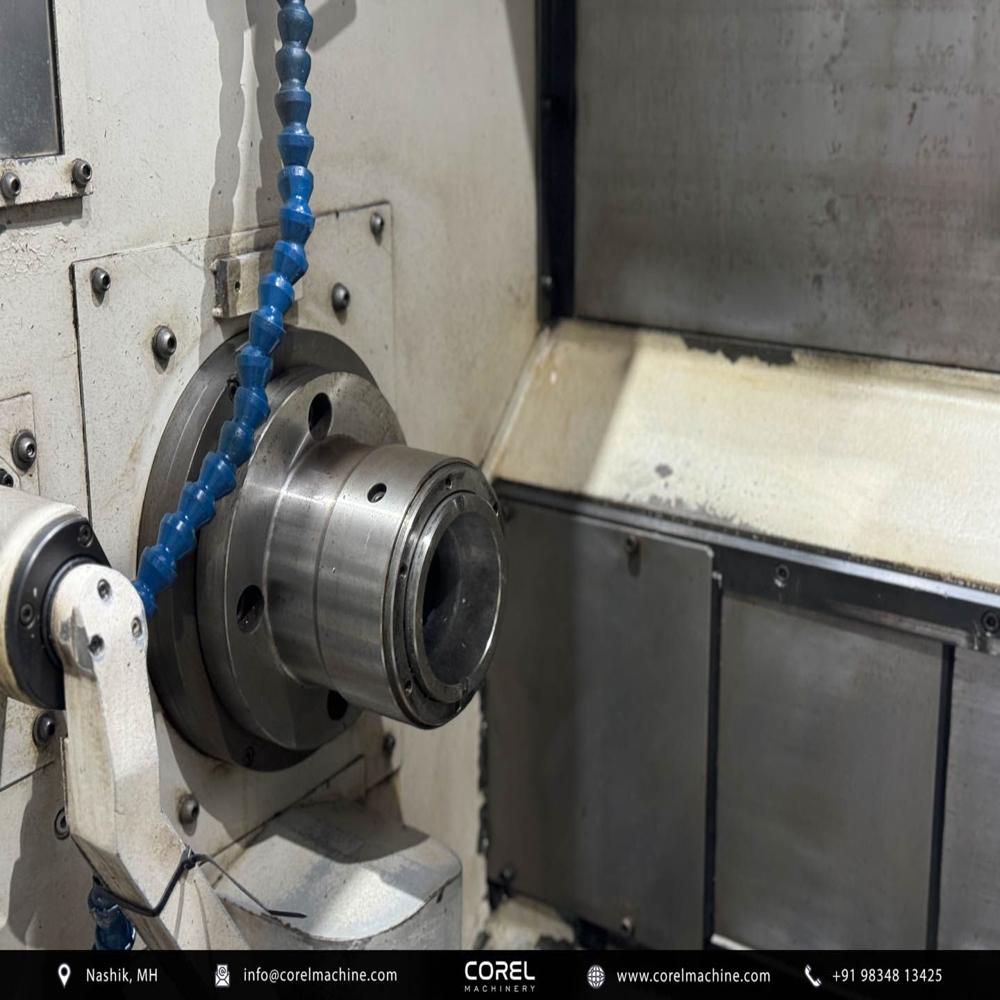

- Chuck Size
- Main: 10 inch (250 mm), Sub: 6 inch (165 mm)

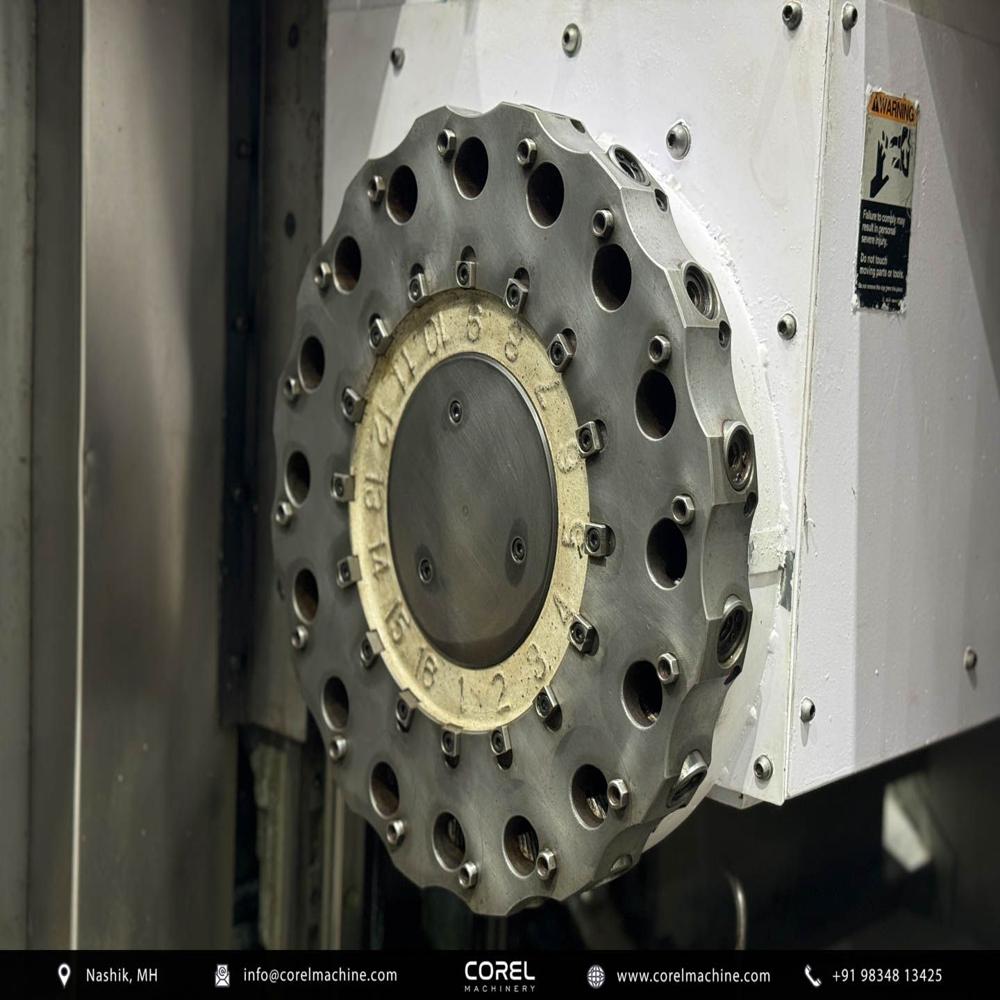

- Tool Turret
- 12-Station Live Tool Turret
- Air Requirement
- 5.5-6 kg/cm2 (for pneumatic components)
- Coolant System
- Standard High-Pressure Coolant
- Live Tool Speed
- Up to 4000 rpm
- Chip Conveyor
- Standard
- Rapid Traverse (X/Y/Z)
- 24/12/30 m/min

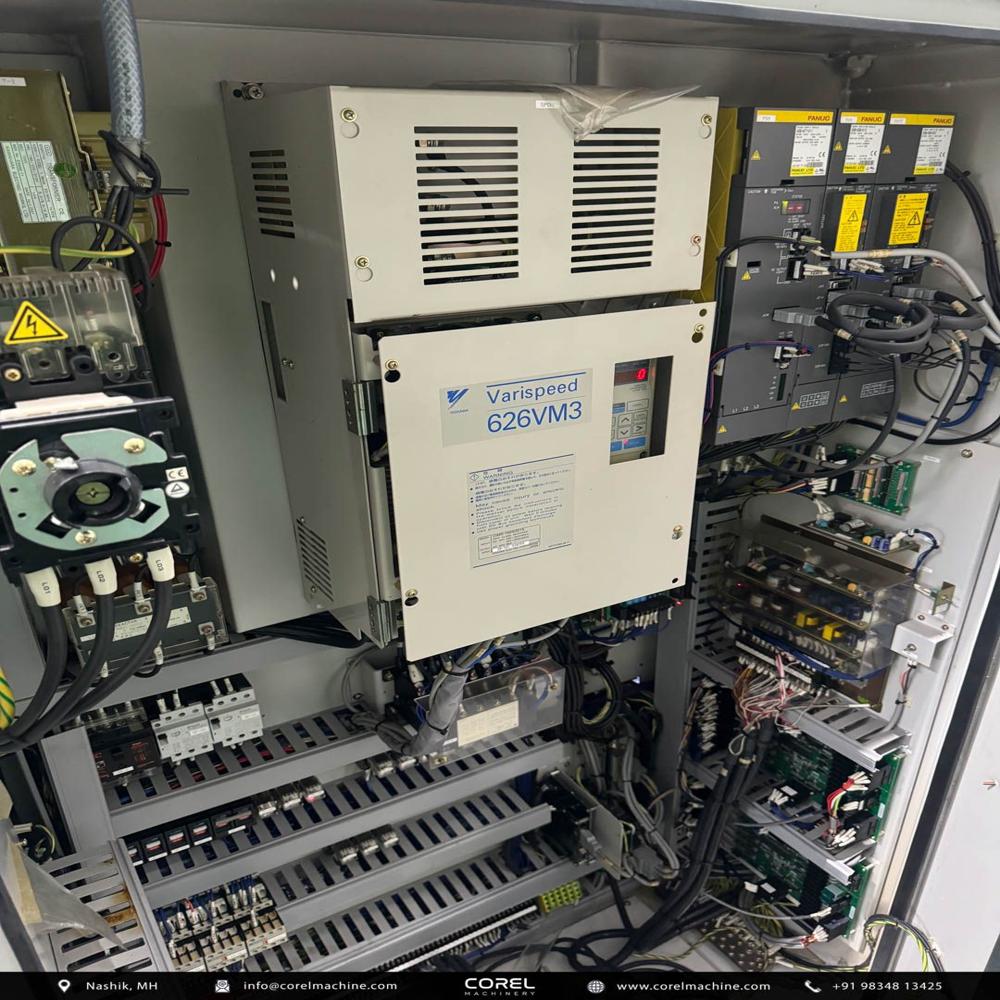

- Control System
- FANUC 18i-T or 21i-TB (depends on model year)
- Max Bar Capacity
- 65mm (through spindle)
- Positioning Accuracy
- 0.003 mm
- Repeatability
- 0.002 mm
- Display
- Color TFT with support for G-code programming
